WSZ14DRS-32A/WSZ12DM-32A
nos centramos en cuatro áreas fundamentales
I+D y fabricación de contadores inteligentes de energía y agua
Desarrollo de equipos de comunicación IoT
Diseño y funcionamiento de sistemas de medición inteligentes
Análisis en la nube de los datos de consumo de agua y electricidad
Compartir este artículo :
The WSZ14DRS-32AWSZ12DM-32A is a single phase two wire smart energy meter with white back-lighted screen for perfect reading.It measures voltage,current,frequency,power,active energy,etc.One communication port(RS485 Modbus/M-bus)are provided for remote monitoring and setting,suitable for monitoring energy consumption in residental,EV Charging system,industrial andutility applications. With modular design,the energy meter has achieved as 1-Din(1module 18mm width)structure with the advantages of small size, high accuracy,high reliability and easy installation.The energy meter has been MID approved to meet the requirements of EU Directive 2014/32/EU.MID Certificate number is 0120/SGS⁰207.
◎ RS485 Modbus/M-bus communication ◎ Din-rail mounting,1 Module 18mm Width ◎ LCD with backlight ◎ Multi-measurement:kWh,W,V,A,Hz,etc ◎ With supper capacitor,the LCD is also legible twice within a period of 2 weeks without power supply. ◎ When the phase conductor is missing or the current direction is wrong ‘false’and the corresponding phase conductor are indicated on the display.
The WSZ14DRS-32AWSZ12DM-32A is a single phase two wire smart energy meter with white back-lighted screen for perfect reading.It measures voltage,current,frequency,power,active energy,etc.One communication port(RS485 Modbus/M-bus)are provided for remote monitoring and setting,suitable for monitoring energy consumption in residental,EV Charging system,industrial andutility applications. With modular design,the energy meter has achieved as 1-Din(1module 18mm width)structure with the advantages of small size, high accuracy,high reliability and easy installation.The energy meter has been MID approved to meet the requirements of EU Directive 2014/32/EU.MID Certificate number is 0120/SGS⁰207.
| Model | Type | Rated Voltage(Un) | Rated Current(Ib) | Pulse constant | Frequency | Dimensions(H×W×D)mm |
| WSZ14DRS-32A | Single
Phase |
230V | 5A(32)A | 2000imp/kWh | 50 Hz | 82.5×18×62.5 |
| WSZ12DM-32A |

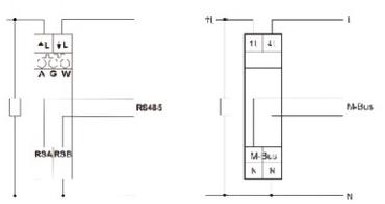

Modbus Communications(WSZ14DRS-32A
| Interface Standard | RS485 |
| Protocol | Modbus RTU(default)or BR14 or DL/T 645 |
| Baud Rate | 1200/2400/4800/
9600/57600bps |
| Communication Address | 1-250 |
| Maximum bus loading | 64 pcs |
| Transmission Distance | ≥1000m |
| Parity | EVEN/ODD/NONE |
| Data Bits | 8 |
| Stop Bits | 1 |
| Operational Voltage | Extended Range | Internal Consumption | Precisión Class |
| 0.9Un~1.1Un | 0.8Un~1.15Un | <0.2W | class B |
| Storage and operating humidity | Annual average value≤75% |
| Operating temperature | -25℃~+55℃ |
| Limiting operating temperature | -40°℃~+70℃ |
| Storage and transport temperature | -40℃~+70℃ |
| International standard | IEC62053-21/EN50470-1 /EN50470-3 |
| Mechanical environment | M1 |
| Electromagnetic environment | E2 |
| Protection class | IP51(indoor) |
|
Maximum conductor cross section |
|
|
L |
16mm² |
| N | 12mm² |
| so | 6mm² |
M-bus Communications(WSZ12DM-32A)
| Interface Standard | M-bus |
| Protocol | Mbus-CR(default)or DL/T 645 |
| Baud Rate | 1200/2400/9600bps |
| Communication Address | 1-250 |
| Transmission Distance | ≥1000m |
| Parity | EVEN/ODD/NONE |
| Stop Bit | 1 or2 |
| Response Time | <60 ms(readlwrite) |
